14″ x 14″ Stainless Steel Flush Non-Rated Access Doors 1″ Exposed Flange Vertical or Horizontal Installation Durable return radius door patent pending spot free design BA-BPT Stainless Steel Flush Non-Rated Door Specifications Door: 14″ wide x 14″ high Rough Opening Size: 14 1/4″ wide x 14 1/4″ high Material: 16 gauge steel Lock/Latch: Screwdriver Operated Cam Latch Flange: 1″ flange Hinge: Concealed Pin Hinge Finish: #4 satin finish.
16″ x 16″ Stainless Steel Flush Non-Rated Access Doors 1″ Exposed Flange Vertical or Horizontal Installation Durable return radius door patent pending spot free design BA-BPT Stainless Steel Flush Non-Rated Door Specifications Door: 16″ wide x 16″ high Rough Opening Size: 16 1/4″ wide x 16 1/4″ high Material: 16 gauge steel Lock/Latch: Screwdriver Operated Cam Latch Flange: 1″ flange Hinge: Concealed Pin Hinge Finish: #4 satin finish.
18″ x 18″ Stainless Steel Flush Non-Rated Access Doors 1″ Exposed Flange Vertical or Horizontal Installation Durable return radius door patent pending spot free design BA-BPT Stainless Steel Flush Non-Rated Door Specifications Door: 18″ wide x 18″ high Rough Opening Size: 18 1/4″ wide x 18 1/4″ high Material: 16 gauge steel Lock/Latch: Screwdriver Operated Cam Latch Flange: 1″ flange Hinge: Concealed Pin Hinge Finish: #4 satin finish.
24″ x 24″ Stainless Steel Flush Non-Rated Access Doors 1″ Exposed Flange Vertical or Horizontal Installation Durable return radius door patent pending spot free design BA-BPT Stainless Steel Flush Non-Rated Door Specifications Door: 24″ wide x 24″ high Rough Opening Size: 24 1/4″ wide x 24 1/4″ high Material: 16 gauge steel Lock/Latch: Screwdriver Operated Cam Latch Flange: 1″ flange Hinge: Concealed Pin Hinge Finish: #4 satin finish.
8″ x 8″ Stainless Steel Flush Non-Rated Access Doors 1″ Exposed Flange Vertical or Horizontal Installation Durable return radius door patent pending spot free design BA-BPT Stainless Steel Flush Non-Rated Door Specifications Door: 8″ wide x 8″ high Rough Opening Size: 8 1/4″ wide x 8 1/4″ high Material: 16 gauge steel Lock/Latch: Screwdriver Operated Cam Latch Flange: 1″ flange Hinge: Concealed Pin Hinge Finish: #4 satin finish.
12″ x 12″ Stainless Steel Flush Non-Rated Access Doors 1″ Exposed Flange Vertical or Horizontal Installation Durable return radius door patent pending spot free design BA-BPT Stainless Steel Flush Non-Rated Door Specifications Door: 12″ wide x 12″ high Rough Opening Size: 12 1/4″ wide x 12 1/4″ high Material: 16 gauge steel Lock/Latch: Screwdriver Operated Cam Latch Flange: 1″ flange Hinge: Concealed Pin Hinge Finish: #4 satin finish.

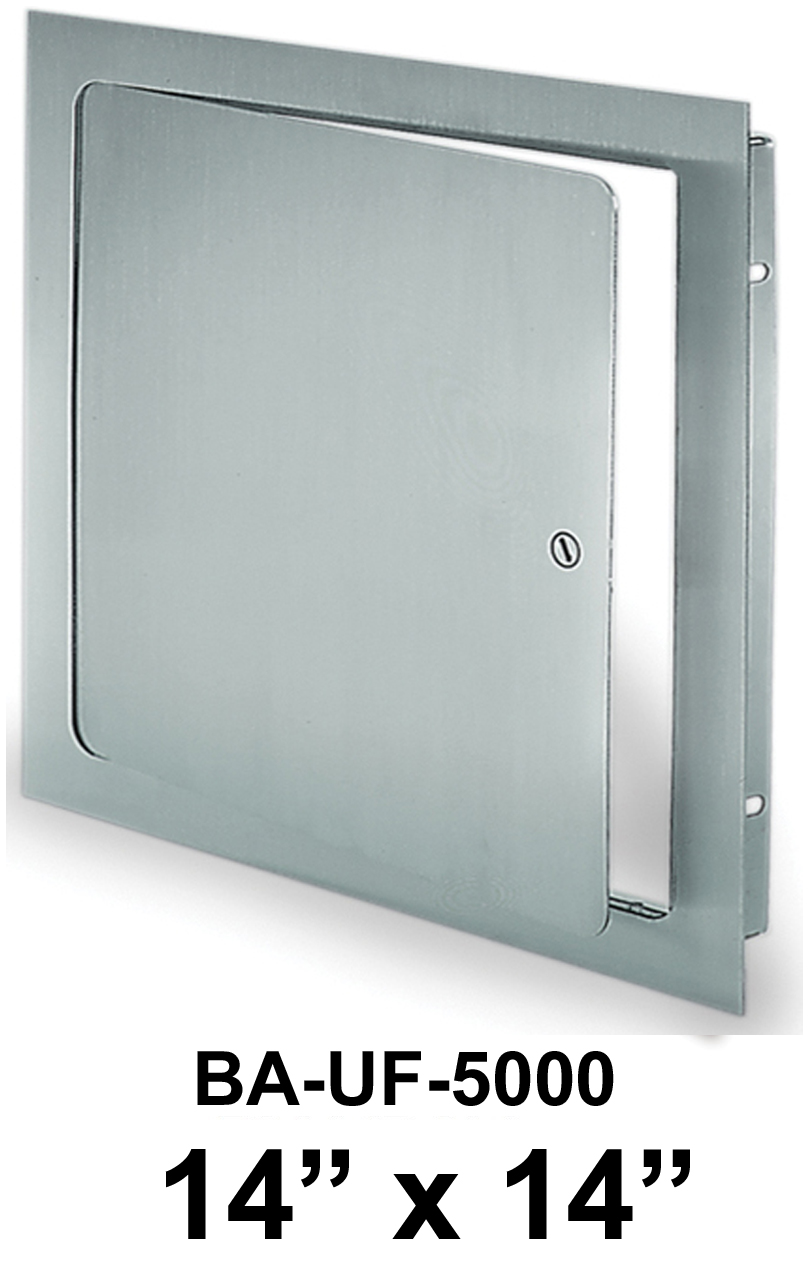

14″ x 14″ Universal Flush Economy Access Door with Flange (Stainless Steel not shown) An innovative universal flush access door for walls and ceilings. It is designed for installation in drywall, plaster, masonry, tile or any flush surface. The door panel features rounded safety corners, which provide an architecturally pleasing appearance. The one-piece trim flange will not rack, sag or distort. The unique continuous concealed hinge will not bind or corrode, allowing the door to operate freely time and time again. For easy installation, the mounting frame is 1 1/4″ deep, giving maximum clearance behind the door frame – Installation in: Drywall, Plaster, Masonry, Tile or any flush surface Product Features: – Door panel has rounded safety corners providing an architecturally pleasing appearance – One piece trim flange will not rack, sag or distortion – Unique continuous concealed hinge will not bind BA-UF-5000 Access Door Specifications: Material: Stainless Steel 304 #4 Door: Flush to frame with rounded safety corners Mounting Frame: One piece outer flange welded to mounting frame Hinge: Continuous, concealed Latch: Stainless Steel screwdriver operated cam latch Finish: Brushed Finish.
22″ x 36″ Aesthetic Access Door with Hidden Flange. BA-CTR is the newest generation of all purpose access Panel, Exclusive Design. Easy to install, it will blend in better than any other door on all non-rated surfaces. Its special European type hinge allows the door, with its beveled edges, to close over the flange thus avoiding additional labor to mud or plaster the flange. The CTR features a truly cohesive appearance due to its well-integrated design of concealing the space between the panel and the flange. A LABOR SAVING alternative to doors with Drywall Flanges. “No Need to Mud or Plaster!. Material: 16 gauge stainless steel Hinge: Concealed, exclusive hinge design Lock / latch: Screwdriver operated cam latch Finish: Brushed finish.
24″ x 24″ Aesthetic Access Door with Hidden Flange. BA-CTR is the newest generation of all purpose access Panel, Exclusive Design. Easy to install, it will blend in better than any other door on all non-rated surfaces. Its special European type hinge allows the door, with its beveled edges, to close over the flange thus avoiding additional labor to mud or plaster the flange. The CTR features a truly cohesive appearance due to its well-integrated design of concealing the space between the panel and the flange. A LABOR SAVING alternative to doors with Drywall Flanges. “No Need to Mud or Plaster!. Material: 16 gauge stainless steel Hinge: Concealed, exclusive hinge design Lock / latch: Screwdriver operated cam latch Finish: Brushed finish.
24″ x 30″ Aesthetic Access Door with Hidden Flange. BA-CTR is the newest generation of all purpose access Panel, Exclusive Design. Easy to install, it will blend in better than any other door on all non-rated surfaces. Its special European type hinge allows the door, with its beveled edges, to close over the flange thus avoiding additional labor to mud or plaster the flange. The CTR features a truly cohesive appearance due to its well-integrated design of concealing the space between the panel and the flange. A LABOR SAVING alternative to doors with Drywall Flanges. “No Need to Mud or Plaster!. Material: 16 gauge stainless steel Hinge: Concealed, exclusive hinge design Lock / latch: Screwdriver operated cam latch Finish: Brushed finish.
